Xray Inspection Process

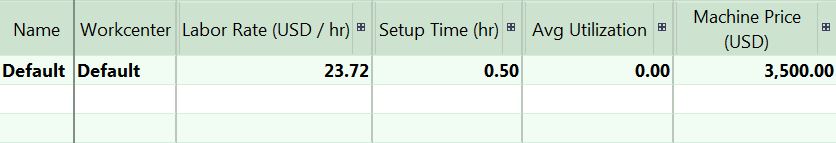

The aPriori starting point Digital Factories define a single machine for this process.

Cost is based on the following formula:

Process Time = Visual Inspection Time Standard * Part Surface Area

Process time depends on the following:

• Visual inspection time standard is inspection time per unit area (specified by the cost model variable visualInspectTimeStandard—5 min/m2 in aPriori starting point Digital Factories)

• Part surface area (obtained from geometry extraction)

•
