Creating Branch Nodes

To create a new branch node, follow these steps:

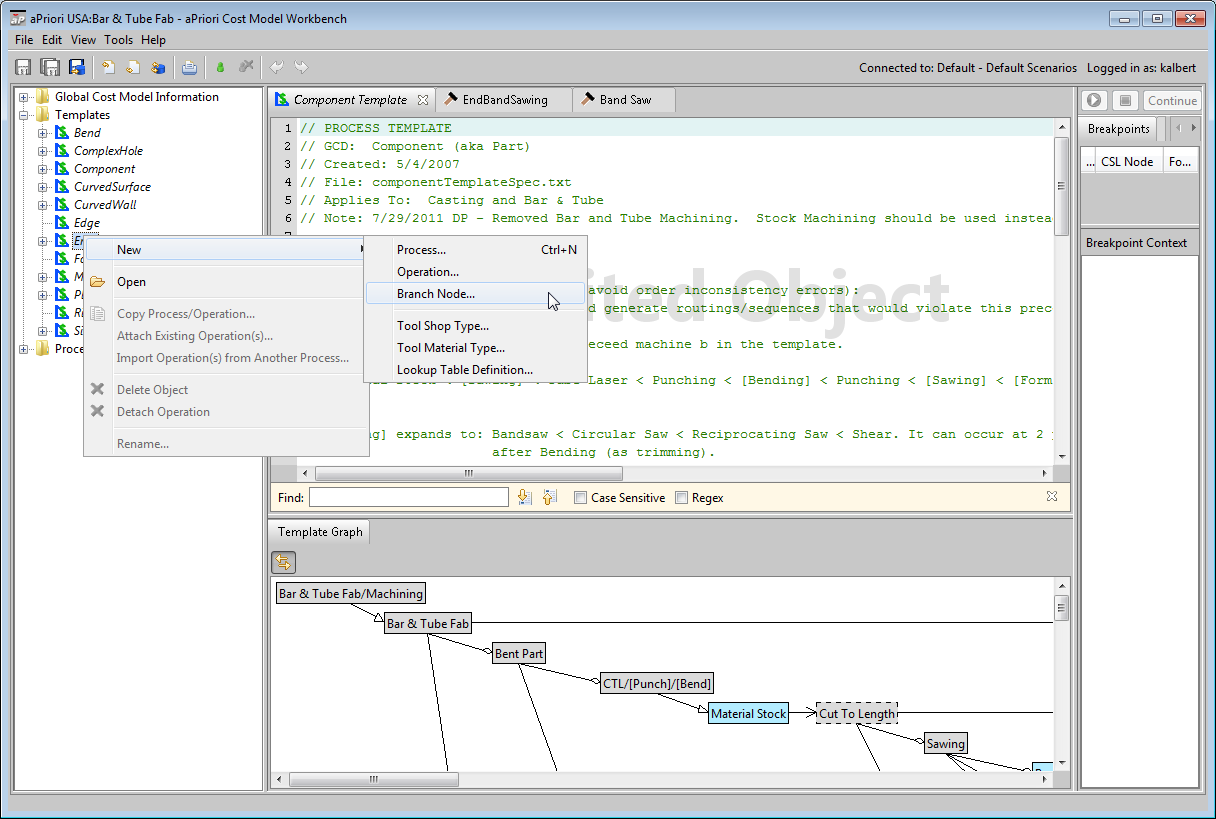

  1. In the navigation pane, under Templates, right-click on the GCD type whose template will refer to the new branch node. Select New > Branch Node... from the context menu.
    The New Branch Node dialog appears.


  2. In the New Branch Node dialog, modify the following sections, if necessary:

    Name: enter a name for the new operation.

    GCD: specify the new branch node’s associated GCD type, the GCD type whose template will refer to the new branch node.


  3. Modify the template for the new branch node’s associated GCD type to refer to the new branch node; see Working with Tool Shop Metadata Create or modify the appropriate CSL modules.
