For a given process group, each CSL module is either global to the process group or associated with a particular node of one of the group’s process or operation templates. Recall that each node represents a process or operation (or else is a branch node; see Working with Tool Shop Metadata).
This section covers the following topics:
Navigating to Global CSL Modules

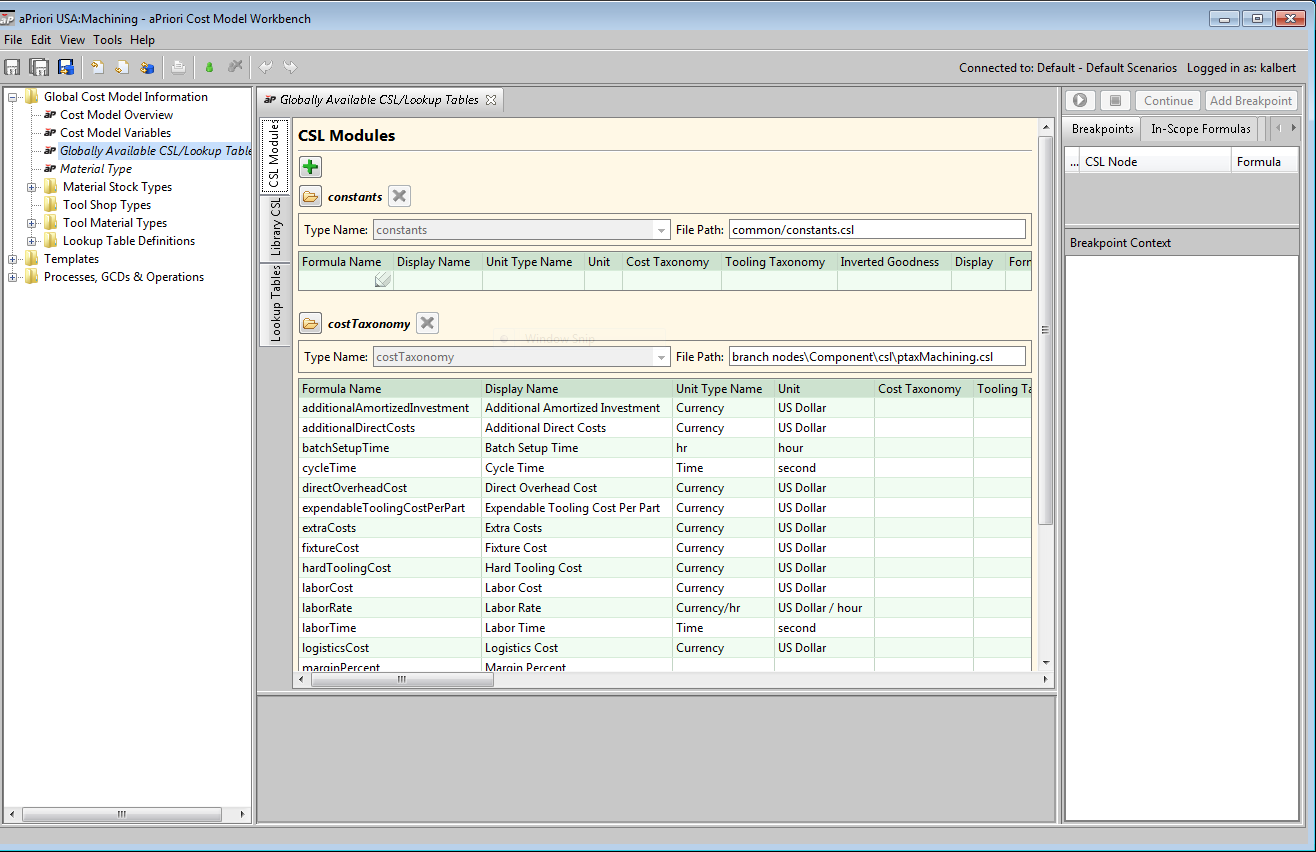

Follow these steps to display information about and links to the global CSL modules for the current process group:
-
In the CMWB navigation pane, expand the Global Cost Model Information node.
-
Double click Globally Available CSL/Lookup Tables in the navigation pane.
-
In the editing pane, select the Library CSL tab (for library modules) or the CSL Modules tab (for non-library modules).
For each global CSL module, the editing pane displays the following:
-
Module name
-
Module type name
-
File path for the module
-
Table of output formulas
-
Folder icon for module viewing or editing
-
X symbol for module deletion
The editing pane also displays a + icon for adding a module. See Adding CSL Modules.
