Viewing and Modifying Digital Factory Variables

To view and modify Digital Factory variables, follow these steps:

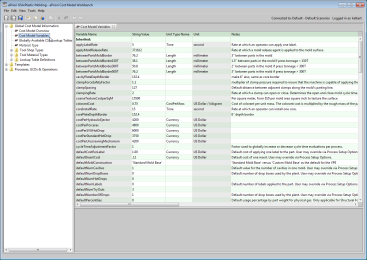

  1. In the CMWB navigation pane, expand Global Cost Model Information, and double click Cost Model Variables. The Cost Model Variables table appears in the editing pane.


  1. To modify a variable’s value, click in the String Value field and enter the new value.
    To modify unit type, double-click in the Unit Type Name field and select a unit type from the dropdown menu. This may change the Unit field, which you cannot directly modify.

  2. To modify a variable’s description, click in the Notes field and enter a new value.

  3. Select Save from the File menu, or click save_icon.png in the toolbar, to save your changes.

  4. To incorporate your changes into the cost model, select Publish Cost Model and Digital Factory from the File menu, or click publish_icon.png in the toolbar.

Note: You cannot modify the Variable Name field.
