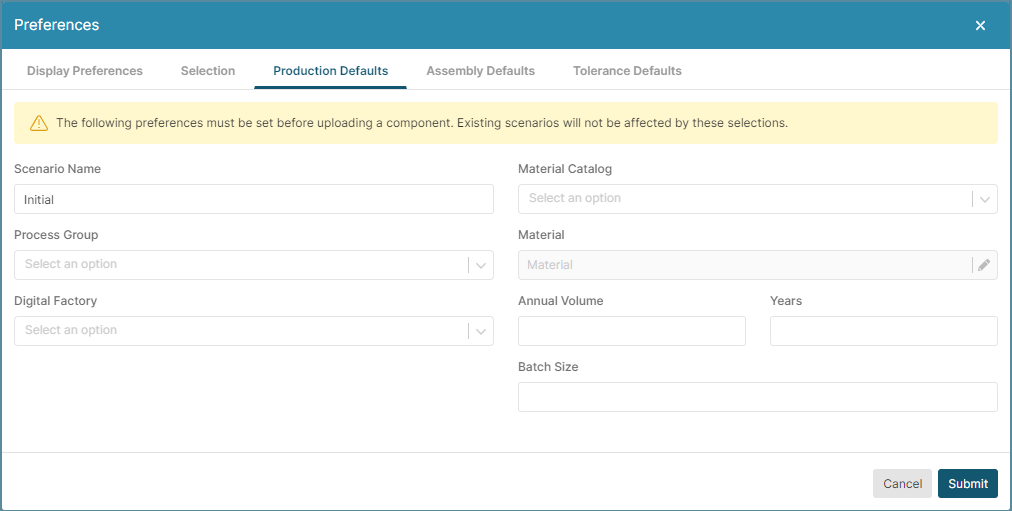

Use the Production Defaults tab to set the default production and manufacturing input values for new components:
You can set the defaults for:
-
Scenario Name: Name for the scenario. The aP Design default name is Initial.
-
Process Group: the Manufacturing process used to make the component.
-
Digital Factory: the aPriori Design Virtual Production Environment.
-
Material Catalog: the catalog to select the material that the component is made from.
-
Material: the material that the component is made from.
Note: This setting is available only if an option is selected for the Material Catalog setting.
-
Annual Volume: the number of components made per year, specified as an integer.
-
Prod. Life (years): Number of years the component is manufactured.
-
Batch Size: Typical number of components produced in one month. The options are:
-
Auto: aP Design calculates batch size as 1/12 of the value specified by the Annual Volume setting.
-
Manual: Specify the Batch Size as an integer in the data field.
-
