Update a CAD File

To update the CAD file for a component using the Update button on the Explore tab or the Evaluate tab:

1. On the Explore tab or the Evaluate tab, select the row for the component.

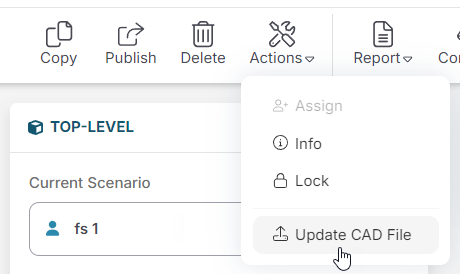

2. In the toolbar, click Actions > Update CAD File.



   The Update CAD File dialog opens.

3. In the Update CAD File dialog, select the CAD file required then click Submit to update the CAD file:
