Update a CAD File in the Assembly Explorer

You can update the CAD file for a component of an assembly in the Assembly Explorer.

The component must have a private scenario, and also be part of an assembly component that has a private scenario.

1. Open the assembly to the Evaluate tab.

2. In the Assembly Explorer, select the component that you want to update the CAD file for.

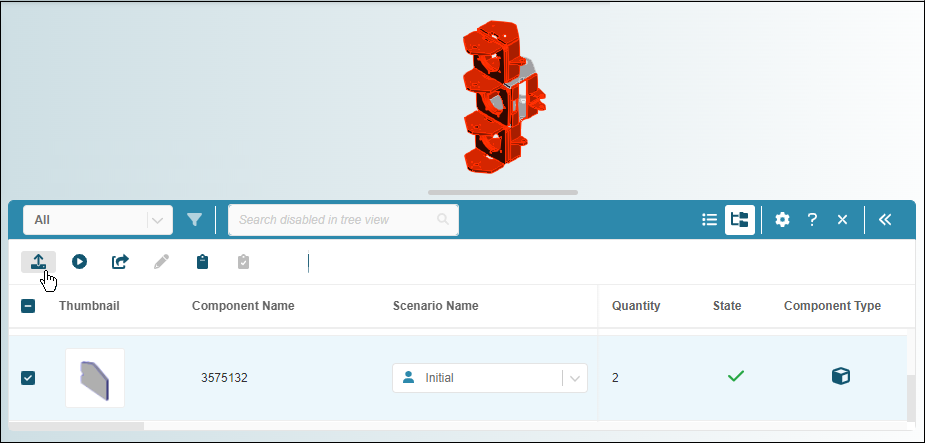

3. In the Assembly Explorer toolbar, click the Update button.

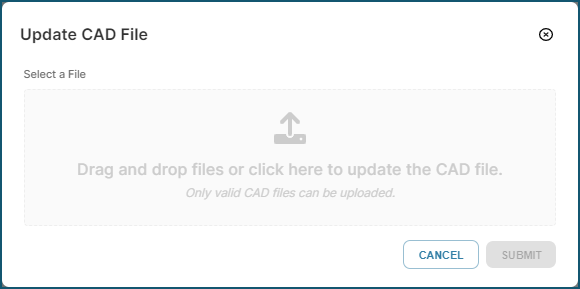

4. In the Update CAD File dialog, select the relevant CAD file, then click Submit to update the CAD file.
