Digital Factory Manager Enhancements
Tool Tips Provide Visibility into Digital Factory Support Rate Fields
The Digital Factory Manager now provides tool tips for various fields which represent support rates, to describe what is included in that rate.

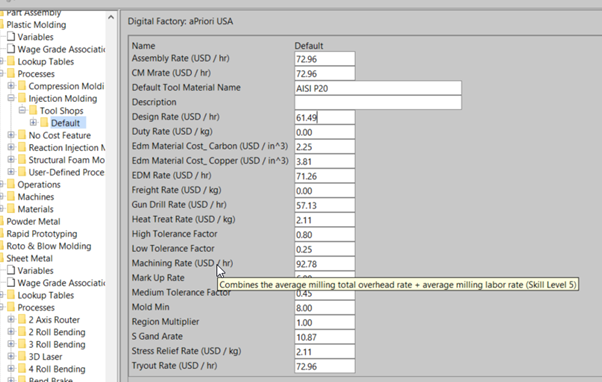

Example 1: Open a toolshop and hover over the Machining Rate field. A tool tip appears explaining that Machining Rate is the sum of the average total overhead rate (across milling machines) and the average labor rate, assuming an operator of Skill Level 5:

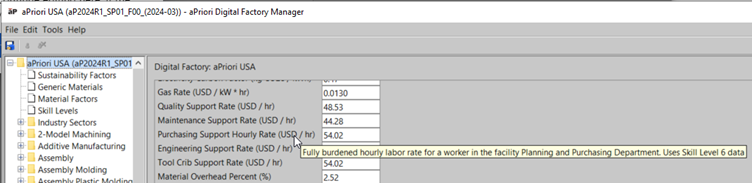

Example 2: Open a Digital Factory and look at the top-level page. Hover over a support rate field, such as Purchasing Support. A tool tip appears explaining what the rate represents, and the related skill level if relevant:
The table below lists the various fields which now provide tooltips:
|
Variable Name |
Tool Tip |
|
Asm Labor Rate |
Combines the average assembly total overhead rate + average assembly labor rate |
|
Assembly Rate |
Combines the average assembly total overhead rate + average assembly labor rate |
|
CMM Rate |
Combines the average assembly total overhead rate + average assembly labor rate |
|
CNC Mach Labor Rate |
Combines the average machining total overhead rate + average machining labor rate |
|
CNC Setup Rate |
Combines the average machining total overhead rate + average machining labor rate |
|
Debug Labor Rate |
Combines the average machining total overhead rate + average machining labor rate |
|
Drilling Labor Rate |
Combines the average Drill Press total overhead rate + average Drill Press labor rate (Skill Level 2) |
|
EDM Rate |
Combines the average Wire EDM total overhead rate + average Wire EDM labor rate (Skill Level 5) |
|
Grinding Labor Rate |
Combines the average grinding total overhead rate + average grinding labor rate |
|
Gun Drill Rate |
Combines the average Gun Drill total overhead rate + average Gun Drill labor rate (Skill Level 2) |
|
Lathe Labor Rate |
Combines the average lathe total overhead rate + average lathe labor rate (Skill Level 5) |
|
Machining Labor Rate |
Combines the average machining total overhead rate + average machining labor rate |
|
Machining Rate |
Combines the average milling total overhead rate + average milling labor rate (Skill Level 5) |
|
Milling Labor Rate |
Combines the average milling total overhead rate + average milling labor rate (Skill Level 5) |
|
Rework Labor Rate |
Combines the average machining total overhead rate + average machining labor rate |
|
Sawing Labor Rate |
Combines the average Saw total overhead rate rate + average Saw labor rate (Skill Level 2) |
|
Tryout Rate |
Combines the average assembly total overhead rate + average assembly labor rate |
|
Wire EDM Setup Rate |
Combines the average Wire EDM total overhead rate + average Wire EDM labor rate (Skill Level 5) |
|
Wire Labor Rate |
Combines the average Wire EDM total overhead rate + average Wire EDM labor rate (Skill Level 5) |
|
Tryout Rate |
Combines the average assembly total overhead rate + average assembly labor rate |
