Add Components to an Assembly

You can add previously-costed components to an existing assembly.

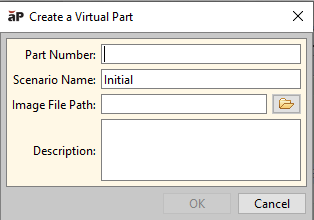

Note: If a CAD file is not available for the component, you can add a virtual component - see Add Virtual Components to an Assembly.

To add a component:

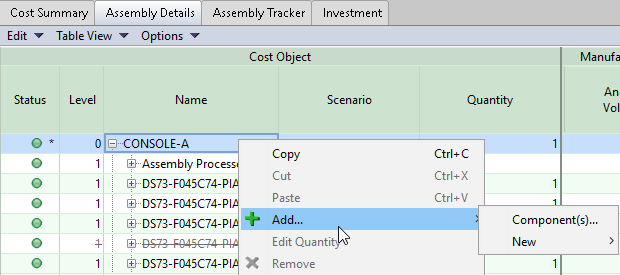

1. Select the top-level assembly in the assembly tree, right click and select Add... from the drop down menu.



2. Select Add > Component(s) to add an existing component.

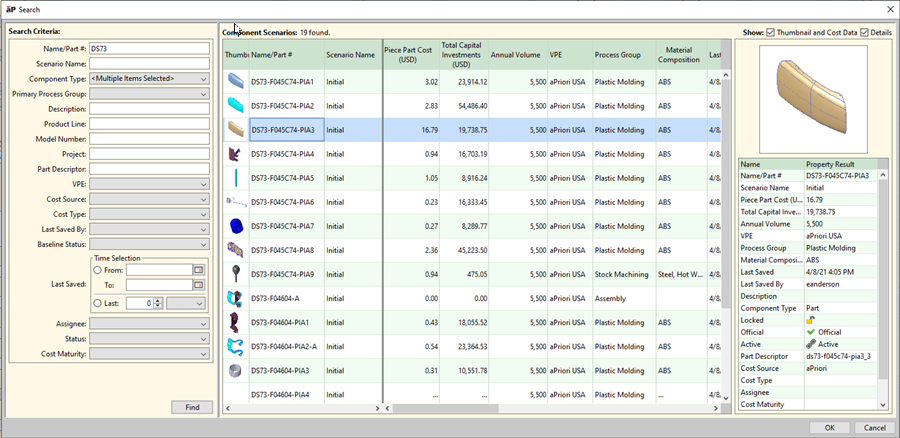

   In the search window that appears, you can search the database for the components to add, select, and click OK.
