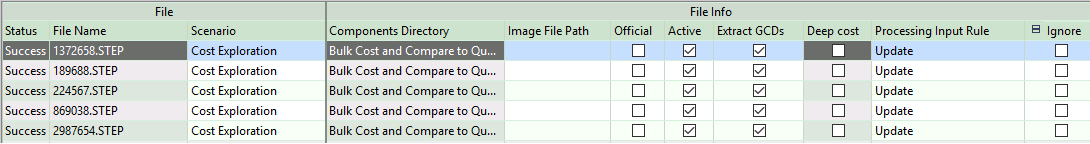

These File and File Info fields support multiple scenarios:
Scenario: You can specify that multiple scenarios for a single part or assembly should be costed during the Bulk Cost operation.
Each scenario requires a different row in the Bulk Costing & Analysis UI and in the User Inputs spreadsheet.
The Scenario field in the Bulk Costing & Analysis UI provides a pull-down menu showing the scenarios that are acceptable.
You cannot have two instances of the same scenario for the same part.
You cannot edit the scenario if the row is not defined in a User Inputs file.
Official: When set to TRUE in the User Inputs spreadsheet, or “checked” in the Bulk Costing & Analysis table, the scenario specified in the row is made the official scenario. (Default = FALSE.)
If a component has not been initialized, the first scenario created by the Bulk Loader is made official even if this field is False.
If the Bulk Loader processes a subsequent scenario that is marked “Official” for the component, it supersedes the official status of the first scenario.
However, you cannot assume in what order the Bulk Loader will process rows: variables such as sorting by column in the UI, or setting the bulkload.concurrent.loader.count to a value greater than “1” in plugin.properties, can result in rows being processed in a different order than you might expect.
Active: When set to TRUE in the User Inputs spreadsheet, or checked in the Bulk Costing & Analysis table, CAD-connected components will be updated whenever the CAD part changes.
Setting a part to Inactive means that GCDs remain static even if the CAD part is updated and must be updated manually before changes to the CAD files will be reflected in the Bulk Cost operation.
This field is optional; if not explicitly set, the default is TRUE.
Deep cost: (Default = FALSE) When set to TRUE in the User Inputs spreadsheet, or checked in the Bulk Costing & Analysis table, CAD-connected components will be updated whenever the CAD part changes.
processingInputRule: What to do if the scenario already exists:
Update: (Default) Add new inputs to the existing scenario and retain any existing inputs that are not changed through the Bulk Cost update. This merges new inputs into the existing scenario, overriding the specified input selections.
Skip: Do not process; skip component scenario.
Create New Scenario: Create a new scenario by copying from the existing scenario and then applying the inputs provided through Bulk Costing. If the scenario name already exists, increment it, for example Final(2)
Clear Existing Data & Reload: Clear all inputs and outputs for the scenario and recost using the inputs defined in the Bulk Cost run.
