Create Comments

Contributors can create comments for others to access in several ways:

• Create Comments on a Data Field
• Create Comments in the Comments Panel
• Create Comments on the 3D Model

Create Comments on a Data Field

To create a comment on a specific data field on the part page:

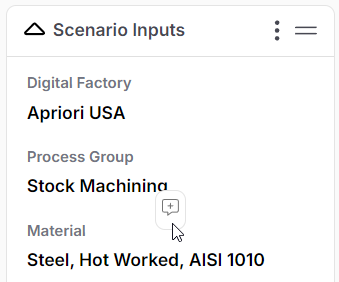

1. Hover over the data field, for example the Material field in Scenario Inputs. A speech bubble appears:
2. Click the speech bubble.

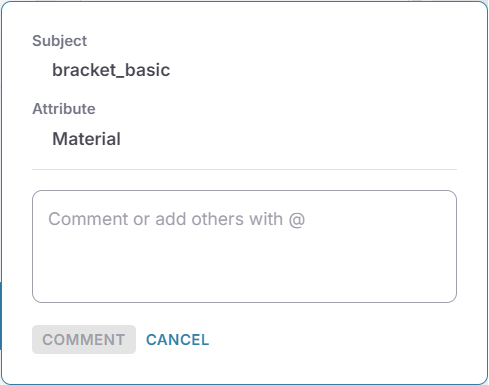

3. Compose your message or assign the comment to a colleague, making it a task:
4. Click Comment to add the comment.

Create Comments in the Comments Panel

All comments appear in the Comments panel. From here, you can:

• Add additional comments.
• Unassign, delete, or resolve comments.
• View messages associated with a part.

To create a new message in the Comments panel:

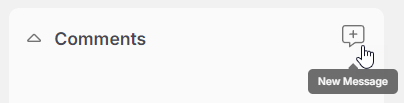

1. Click the New Message icon:
2. Optionally, select an attribute; for example, Margin Percent.
3. Type your comment or add others with @ to assign a task to a team member..
4. Click Comment.

Create Comments on the 3D Model

You can also comment on GCDs in the 3D model:

1. Select a GCD from the Design Guidance window.

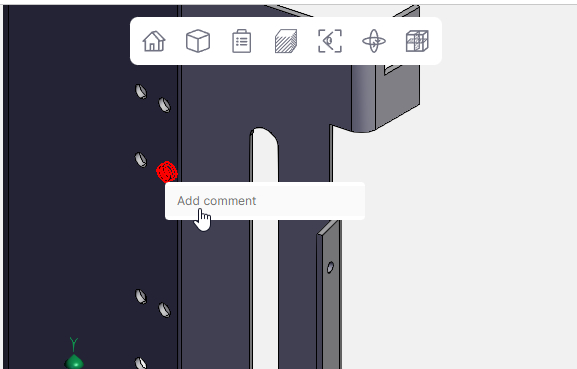

2. Right-click the GCD in the 3D viewer.
3. Click Add Comment:
4. Compose the comment or add others with @ to assign a task to a team member.
5. Click Comment.
