Insight Card Tabs

Insight Cards found underneath the 3D Model provide more detailed information around material, design guidance, cost and process routing:

Insight Card	Description
Routing	Manufacturing routing sequence and process information. You can configure the graph to show the routings in terms of Cycle Time, Fully Burdened Cost, or Piece Part Cost.
Cost	Simple breakdown of primary costs. You can configure the graph to show the costing in terms of Fully Burdened Cost, Piece Part Cost, Total Capital Investments.
Part nesting	Examine different nesting patterns for processes such as sheet metal hydroforming and transfer die.
Materials Stock	Raw material form that would be used to make a part.
Material Properties	Specific properties of material like density, general $/kg, and so on.
Design Guidance	Displaying DFM issues, high-cost features, Tolerances, and Threads.
Assembly Tree	Provides visibility into the parts of an assembly that are used when calculating the cost elements within a scenario.

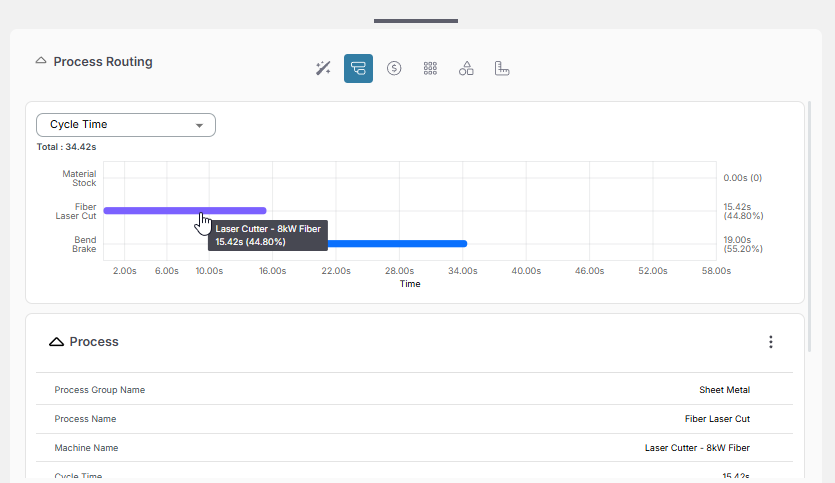

To populate the Process card that appears below the graph with information about the process, click a process step in the graph:
