Sustainability Insights

aPriori Professional 2023 R1 provides Sustainably Insights that enable you to examine and compare the carbon emissions (CO2e) from different manufacturing scenarios for your parts. If you use Cost Insight Report, you can also examine the CO2e at the assembly level.

Sustainability Insights

Examine, compare, and reduce manufacturing carbon emissions

aPriori Professional 2023 R1 introduces Sustainability Insights – a separately licensed module that calculates carbon emissions at the part manufacturing level. Cost Insight Report users can aggregate the data for part scenarios to determine the carbon emissions for assemblies.

If you are interesting in adding the Sustainability Insights module to your deployment, please contact aPriori Support.

The Sustainability module layers sustainability data on top of aPriori's cost models to enable you to create carbon baseline data, identify carbon outliers, and perform material, process, and design trade-offs to see the impact and take actions to reduce parts or product carbon footprint.

The data that the Sustainability module provides helps manufacturers determine the carbon footprint of their manufacturing processes, by calculating how much carbon is emitted during the manufacture of products and during the production of the materials that go into those products.

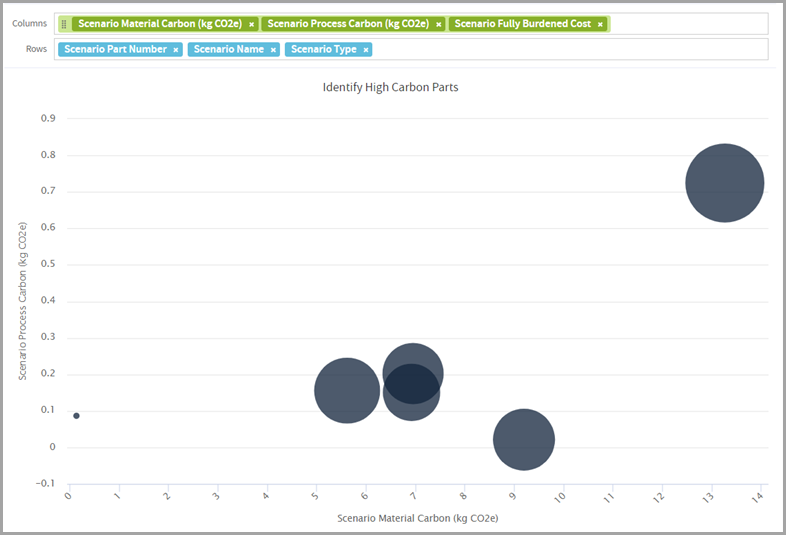

You can examine carbon data in the:

View Sustainability Results (aPriori Professional User Guide, 2023 R1).

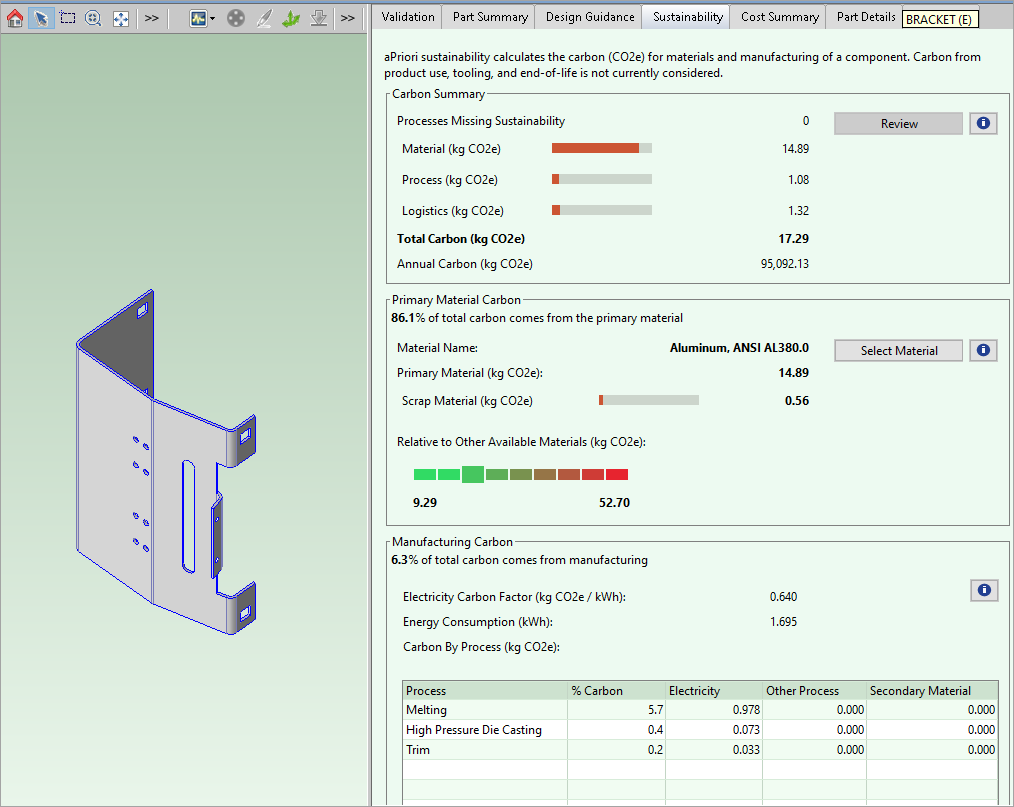

Part Details tab – review, and, as applicable, edit data in either the All Data or the Sustainability Summary view.

For more information, see Edit Sustainability data in the Part Details tab. (aPriori Professional 2023 R1 User Guide.

For more information, see Edit Sustainability data in the Part Details tab(aPriori Professional User Guide, 2023 R1).

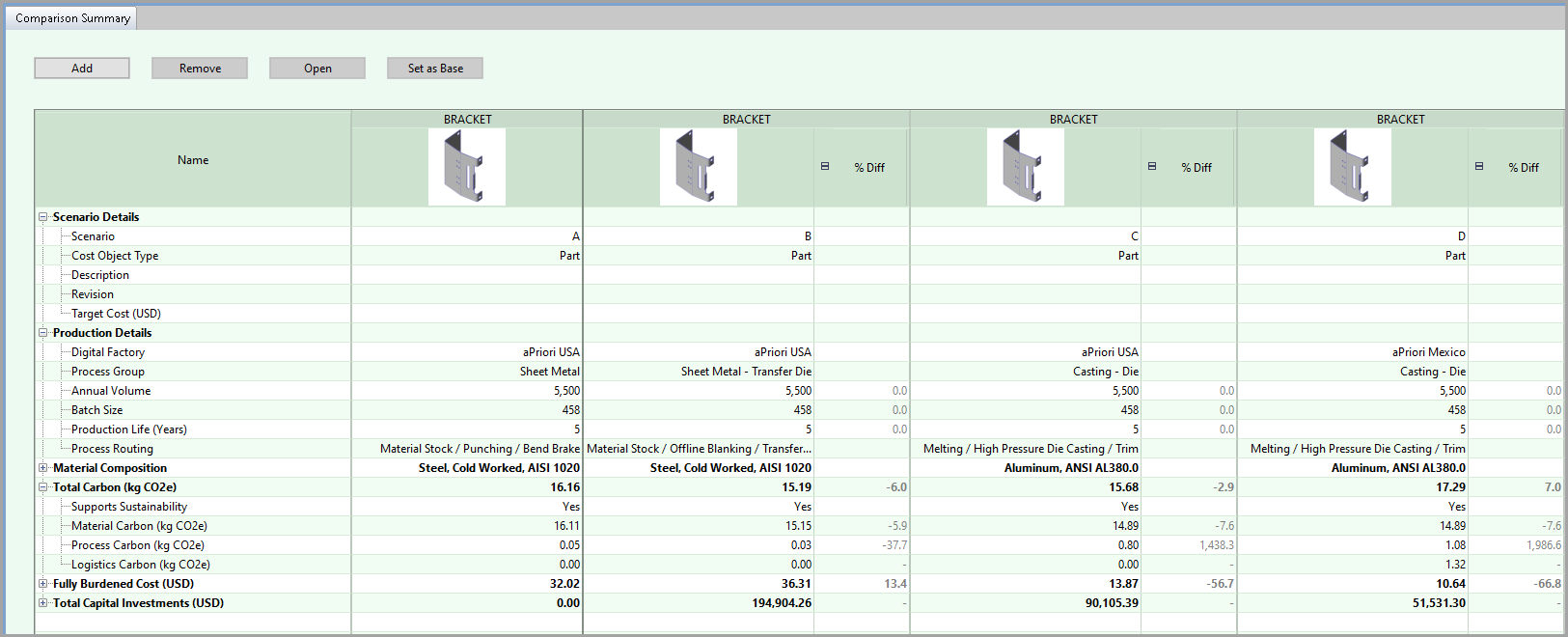

Scenario Comparison – Compare the carbon emissions for different Digital Factories, process groups, routings, and materials.

For more information, see See how different manufacturing options affect carbon impact for a part. (aPriori Professional User Guide, 2023 R1).

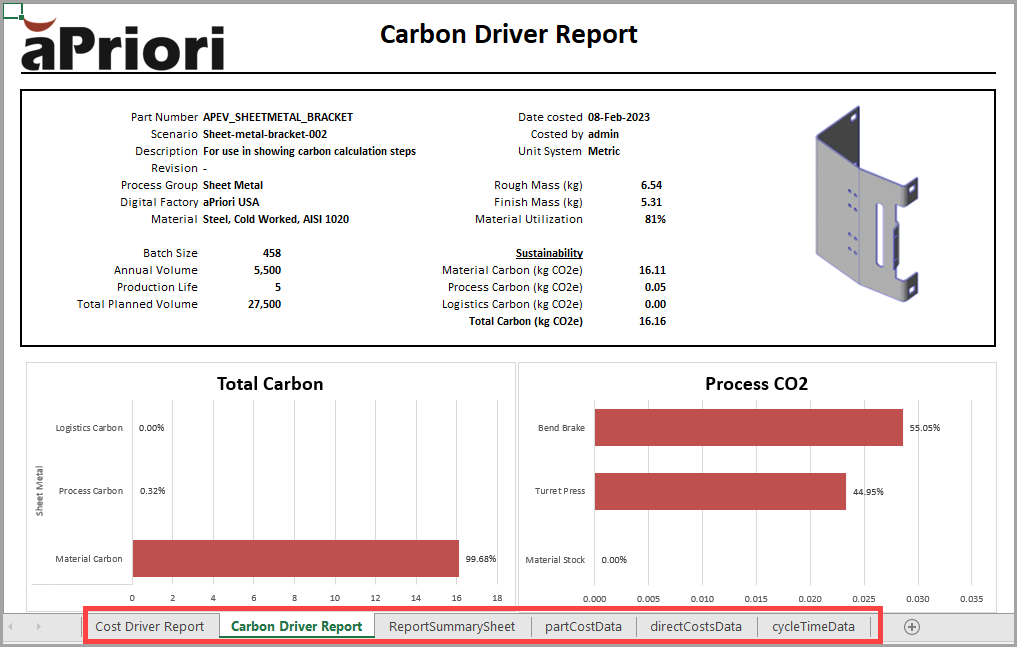

Spreadsheet Reports (Carbon Driver Report; Cost Driver Report; Roll-up Summary Report; Cost Comparison Report; Part Cost Report).

For more information, see Sustainability spreadsheet reports. (aPriori Professional 2023 R1 User Guide.

Processes supported in Sustainability

This table shows the processes that are currently supported by aPriori Sustainability Insights:

Process Group	Process
2-Model Machining	Source Component
Casting - Die	High Pressure Die Casting Melting Trim
Heat Treatment	Age Hot Isostatic Pressing
Machining	2 Axis Lathe 3 Axis Lathe Bar Feed Lathe with Sub Spindle 3 Axis Lathe 3 Axis Mill 4 Axis Mill 5 Axis Mill Drill Press
Plastic Molding	Injection Molding
Sheet Metal	2 Axis Router 2 Roll Bending 3 Roll Bending 3D Laser 4 Roll Bending Bend Brake CTL Deslag Fiber Laser Cut Generic Press Laser Cut Laser Punch Material Stock OxyFuel Cut Plasma Cut Plasma Punch Progressive Die Shear Std Press Tandem Press Turret Press Water Jet Cut
Sheet Metal - Transfer Die	Material Stock Offline Blanking Transfer Die
Stock Machining	Band Saw Material Stock
Surface Treatment	Anodize Decorative Chrome Plating Hard Chrome Plating Nickel Plating Power Coat Cart Wet Coat Line Zinc Nickel Plating Zinc Plating

Note: The Sustainability module does not support custom processes at this time.

aPriori continues to add Sustainability calculations to more processes. Please contact your aPriori representative if there is a specific process that you want Sustainability support for.

Sustainability Insights License

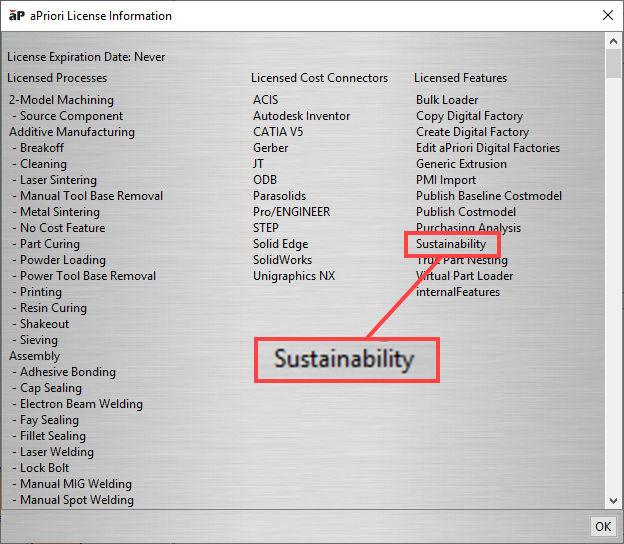

The Sustainability module requires release 2023 R1 or later of aPriori Professional and a Sustainability License. To determine if you have a Sustainability License, in aPriori Professional, in the menu bar, select Help > View License.

If you have a Sustainability License, in the License Information window, the Licensed Features column containsSustainability.
